B METERS IWM-MB3

Description

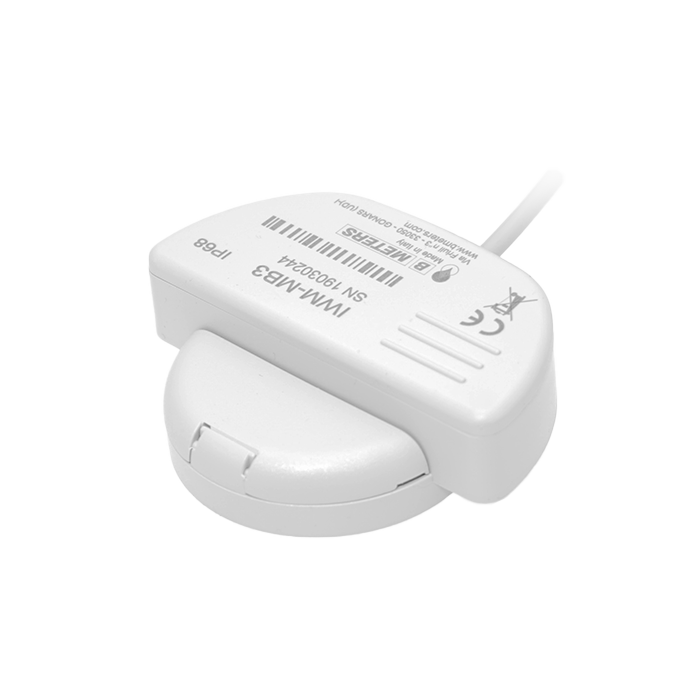

The IWM-MB3 is an integrated module, for the transmission of consumption data via cable M-BUS network, applicable to the series of water meters mod. GMDM-I, GMB-I, GMB-RP-I multi jet and mod. CPR-M3-I single jet.

Easy to install and configure, in addition to information on current consumption, it allows to detect different types of attempted fraud against the meter, prolonged operation at maximum flow rate (Q4) and the presence of a potential water leak downstream of the meter.

The use of an inductive target in the dial of the meter excludes the possibility of magnetic fraud and makes the application insensitive to the vibrations of the pipes.

Tecnical description

The IWM-MB3 is compatible with all the pre-equipped multiple jet meters (wet, semi-dry and dry dial) and provides:

• Consumption analysis with reverse flow compensation
• Fraud detection (removal of the module, external magnetic field tampering, reverse flow, water leakage)
• All the alarms are recorded and reported into the M-BUS telegram sent by the module
• IP68 protection* allows the installation of the module even in harsh environments
• NFC interface allows configuration and commissioning of the device with the use of a simple smartphone app.
